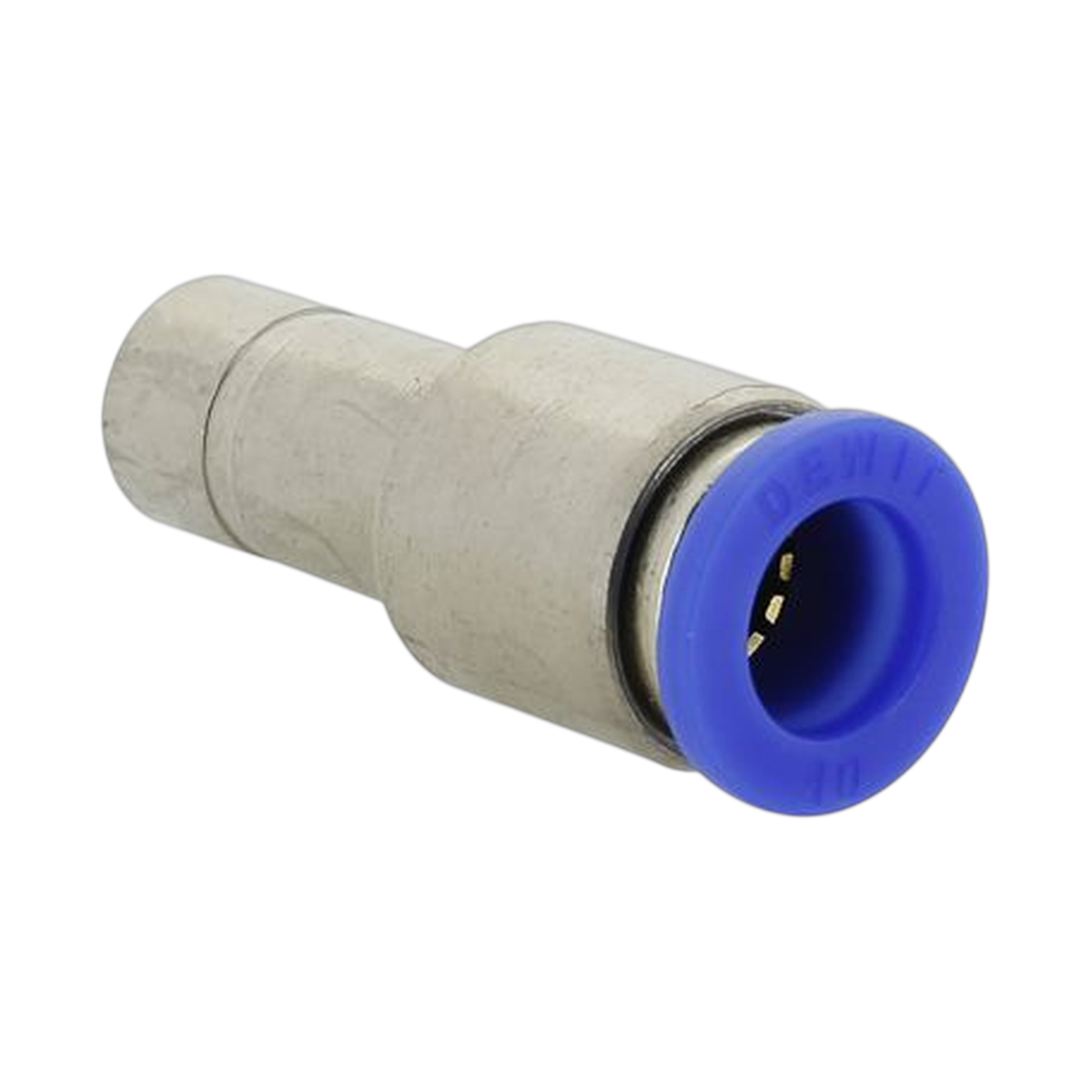

Metric Pneumatic Reduction Adapter Model 0075 - Configure Your Measurements

The DeWit Model 0075 Reducer is a "Push-in" linear adapter that allows secure interconnection between pipes of different sizes. It is the perfect solution for reducing the size of the main distribution line to smaller actuators or valves, maintaining an airtight seal and a compact structure.

Technical Specifications:

• Connection Type: Tube A (Larger) - Tube B (Smaller).

• Configuration: Straight / In-line.

• Coupling System: Instant (Push-to-Connect) on both sides.

• Common Combinations (Inlet-Outlet):

  • 6mm - 4mm

  • 8mm - 6mm

  • 10mm - 8mm

  • 12mm - 10mm

  • 16mm - 12mm

• Fluid: Compressed Air, Vacuum.

• Working Pressure: 0 to 145 PSI (0 to 10 Bar).

• Temperature: 0°C to 60°C.

• Material: PBT resin body and stainless steel gripping claws.

Common Applications:

• Transition from the main air network (e.g. 12mm) to individual branches (e.g. 8mm).

• Connection of sensors or pilot lines using thin hoses (4mm) to standard lines.

• Emergency repairs where a hose of the same caliber is not available.

Download the Technical Sheet by clicking on the image
