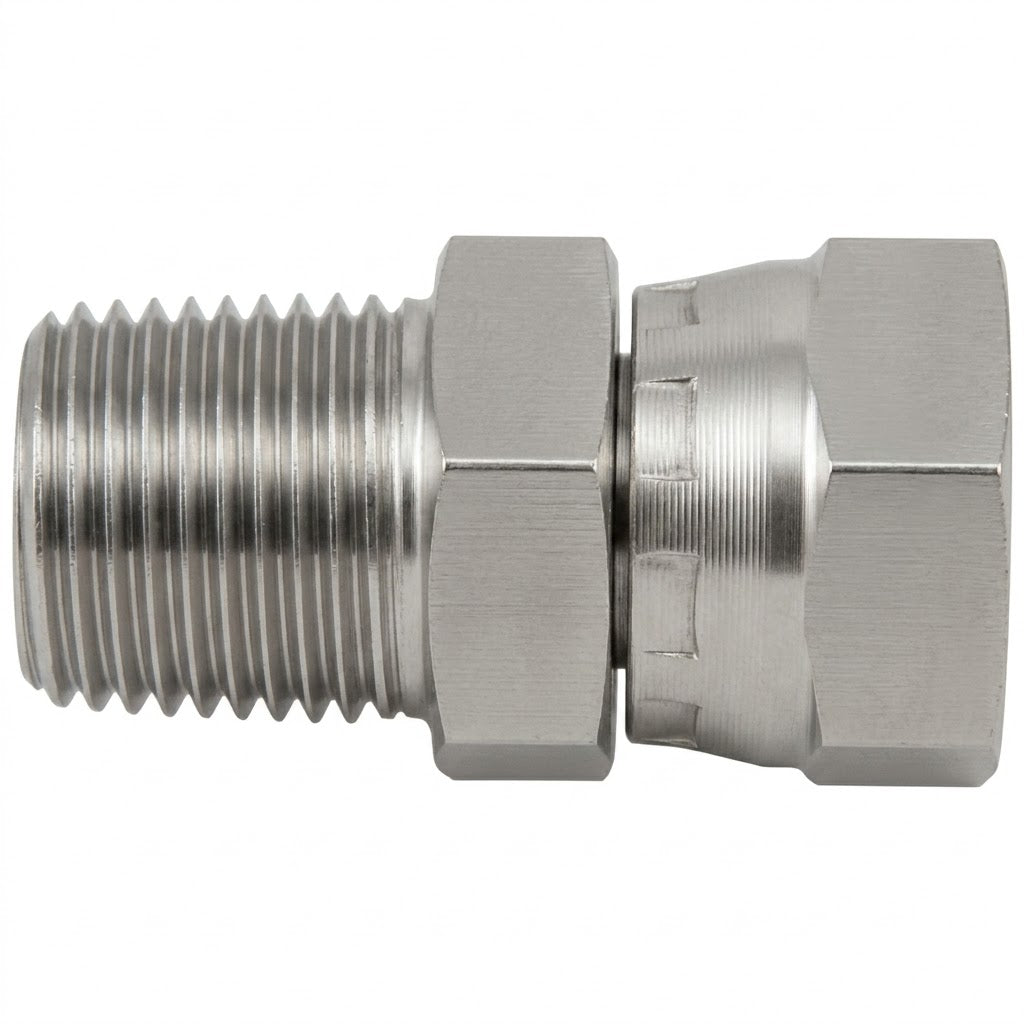

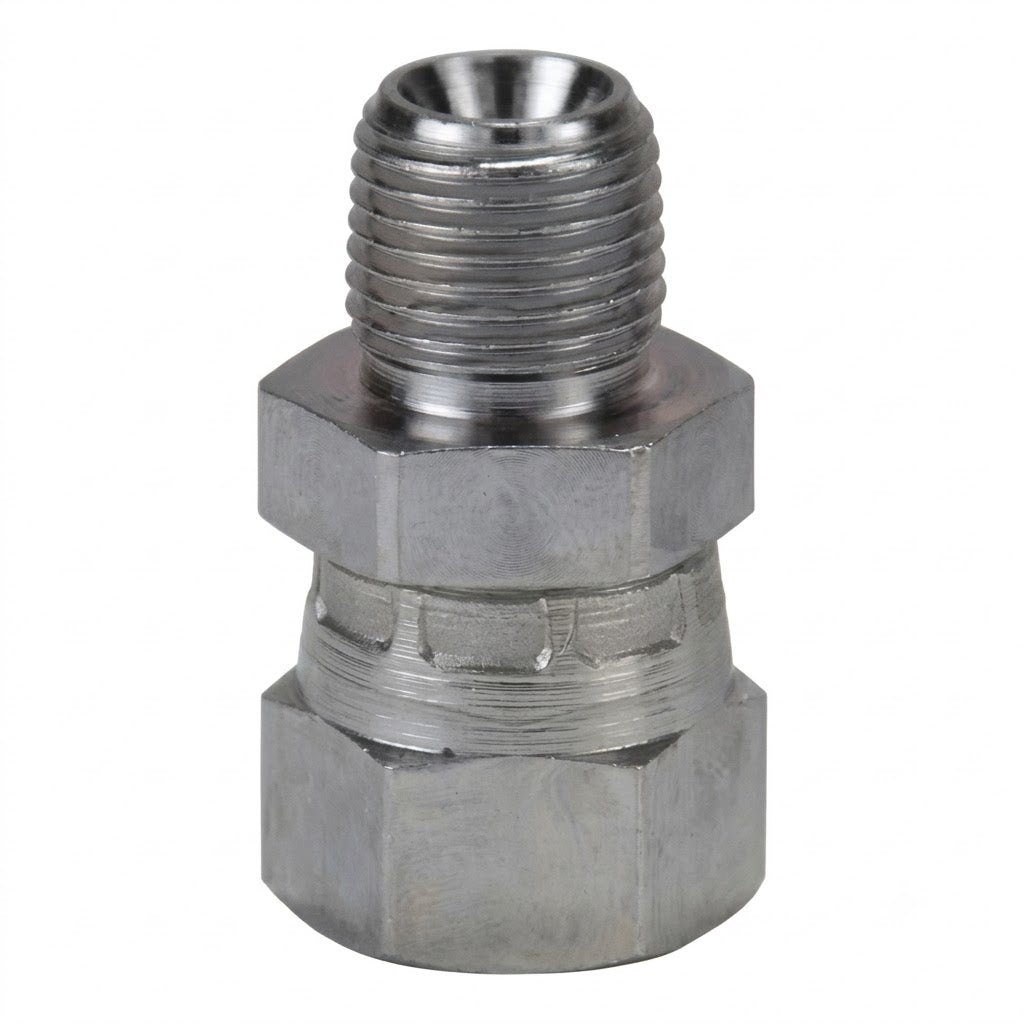

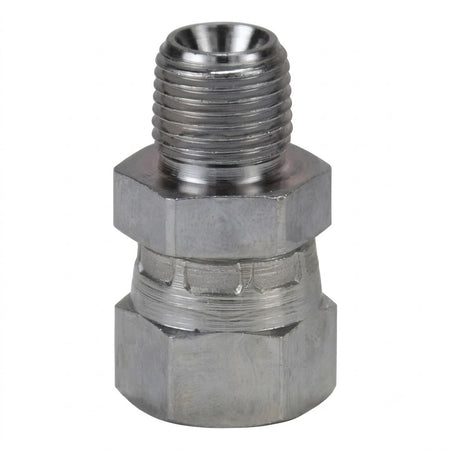

Hydraulic Adapter 1404 Series - Male NPTF x Female NPSM Swivel

High-reliability connector for high-pressure hydraulic systems. Its swivel nut end (NPSM) facilitates assembly in tight spaces and prevents hose twisting during installation, extending its lifespan and ensuring a tight seal without the need for Teflon.

Technical Specifications

• Connection 1: Male NPTF (Rigid) - Dry seal via tapered thread.

• Connection 2: Female NPSM (Swivel Nut) - Mechanical seal via 30° seat.

• Material: Carbon steel with trivalent zinc plating (high corrosion resistance).

• Standards: Manufactured under SAE J514 and SAE J476 standards.

• Operating temperature: -40°C to +120°C.

• Maximum pressure: 1,500 to 6,000 PSI (depending on part diameter).

Applications

Ideal for pressure and return lines in heavy machinery, agricultural equipment, general industry, and transportation systems. Compatible with hydraulic oils, water-glycol, and lubricants
