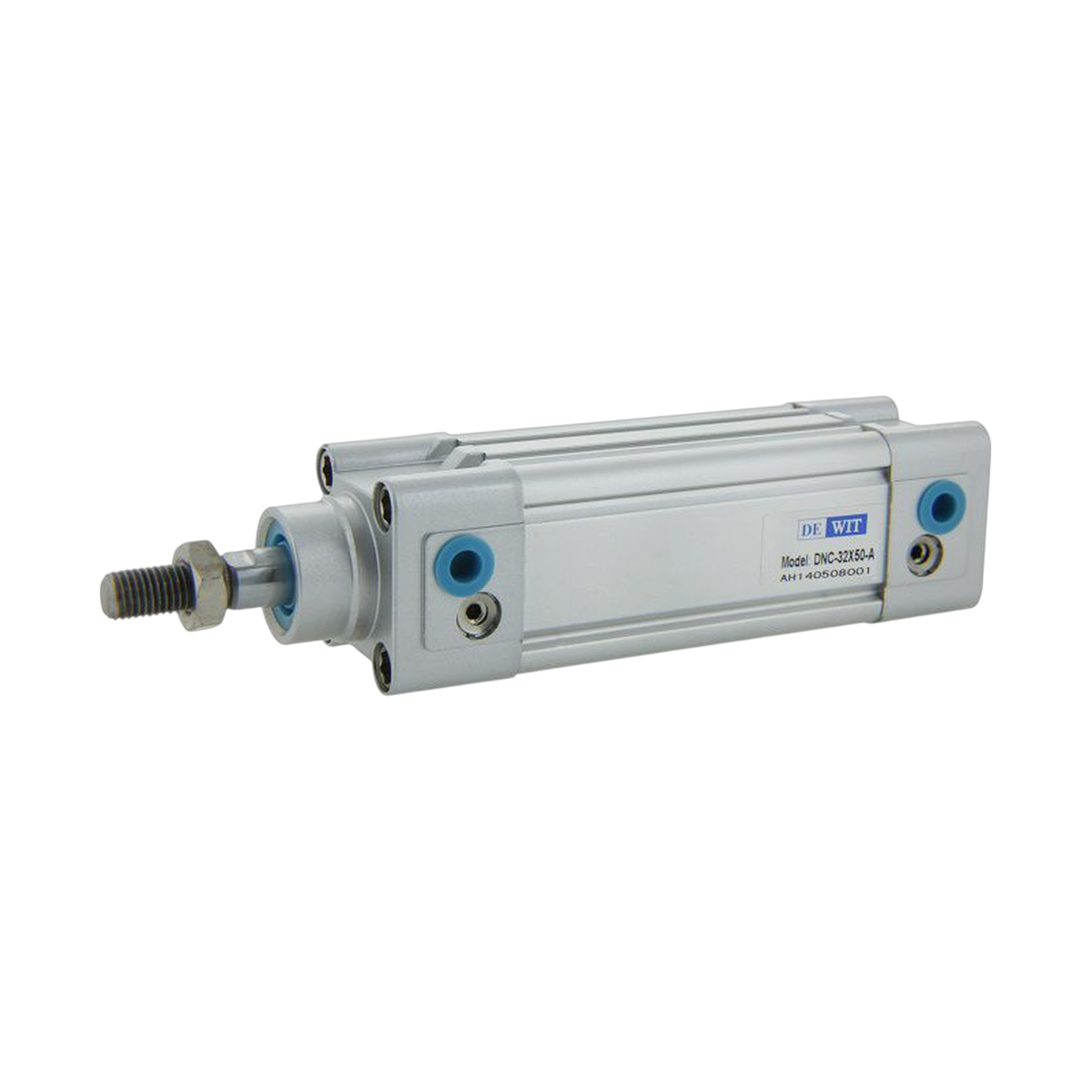

DNC Series Pneumatic Cylinder ISO 15552 Double Acting - Configurable piston x stroke

The DeWit DNC Series Cylinder represents the modern evolution of linear pneumatic actuators. Manufactured under ISO 15552 (which supersedes and updates ISO 6431), this cylinder stands out for its extruded aluminum square profile barrel. Its design is not only aesthetically superior and easier to clean, but it also functionally integrates the grooves for magnetic sensors within the cylinder body itself.

Technical Specifications:

• Standard: ISO 15552 (Dimensionally interchangeable with ISO 6431 and VDMA 24562).

• Action Type: Double-Acting.

• Bore: 32, 40, 50, 63, 80, 100, 125 mm.

• Stroke: Standard from 25mm to 1000mm.

• Cushioning: Adjustable pneumatic cushioning at both ends (Screw adjusters).

• Piston: Magnetic (Sensor ready).

• Sensor Mounting: Integrated "T" slots in the body (Flush mounting).

• Rod: Hard chrome-plated and polished C45 steel.

• Working Pressure: 1 to 10 Bar.

• Seals: High wear-resistant Polyurethane (PU).

Common Applications:

• Automatic packaging machines.

• Pick & Place systems.

• General automation where aesthetics and cleanliness are important.

• Direct replacement for Festo DNC, SMC CP96 cylinders, etc.

Download the Technical Data Sheet by clicking on the Image
