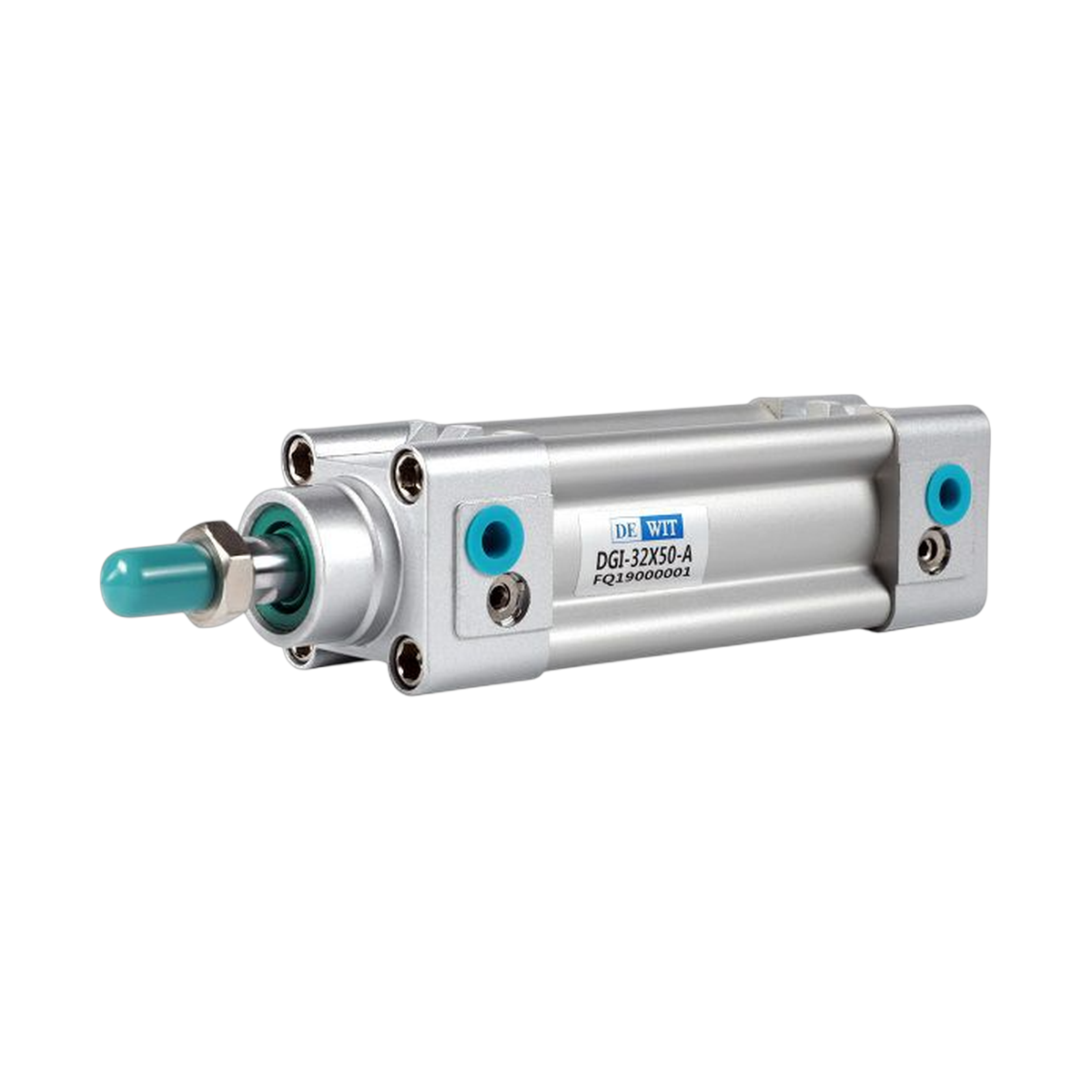

DGI Series ISO VDMA 6431 Double-Acting Pneumatic Cylinder - Configurable bore x stroke

The DeWit DGI Series Cylinder is a high-performance linear actuator designed for demanding industrial automation applications. Its construction strictly adheres to international ISO 6431 standards, ensuring universal mounting hole distances, rod diameters, and threads. Thanks to its integrated magnetic ring in the piston, it is ready for use with position sensors (Reed switch or Solid State) for feedback in PLC systems.

Technical Specifications:

• Standard: ISO 6431 / VDMA 24562 (Interchangeable)

• Action Type: Double Acting (Air to extend, Air to retract).

• Available Bores: 32, 40, 50, 63, 80, 100, 125 mm.

• Strokes: From 25mm to 1000mm (Standard in 25/50mm increments).

• Cushioning: Adjustable Pneumatic Cushioning at both ends (prevents internal impact).

• Piston: Magnetic (Standard).

• Working Pressure: 1 to 10 Bar (15 to 145 PSI).

• Temperature: -10°C to +60°C.

Common Applications:

• Assembly and packaging lines.

• Pushing and ejecting products on conveyor belts.

• Opening and closing heavy gates.

• Plastic injection molding machinery and presses.

Download the Technical Data Sheet by clicking on the Image
