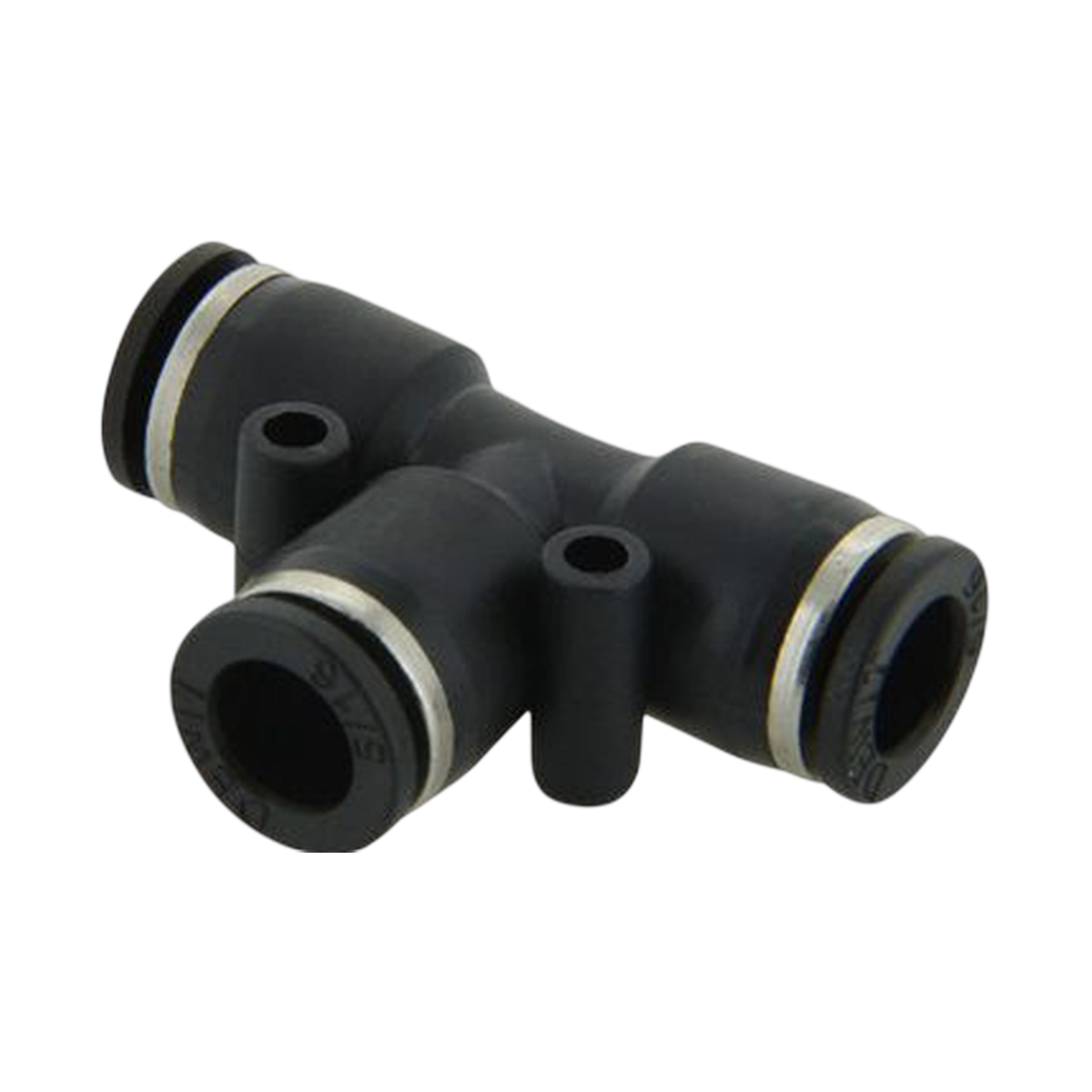

Pneumatic Connector in Inches - Plastic Union Tee Model 0062 - Push-in - Configure your sizes

The DeWit Model 0062 Union Tee (Imperial Series) allows for the quick and secure interconnection of three pneumatic hoses of the same fractional diameter. It is the key component for creating branches in pneumatic systems operating under American (SAE) standards. Its clamping mechanism is specifically calibrated for inch-sized tubing, guaranteeing a hermetic seal that would not be achieved if millimeter hoses were used.

Technical Specifications:

• Configuration: Union Tee (Tube - Tube - Tube)

• Available Sizes: 1/8", 5/32", 1/4", 5/16", 3/8", 1/2" (Outside Diameter of Tube).

• Clamping System: Stainless steel ring with multi-directional gripping teeth.

• Working Fluid: Compressed Air (Clean) / Vacuum.

• Maximum Pressure: 145 PSI (1.0 MPa / 10 Bar).

• Vacuum Pressure: -29.5 inHg (-750 Torr).

• Body Material: High-impact PBT resin.

• Hose Compatibility: Polyurethane (PU) and Nylon in standard sizes.

Common Applications:

• Imported machinery with American specifications.

• Compressed air networks assembled with imperial tubing.

• Maintenance of equipment requiring standard SAE spare parts.

Download the Technical Data Sheet by clicking on the Image
