Metric Pneumatic Connector - Elbow Tube - Plastic Tube Model 0066 - Configure its Measurements

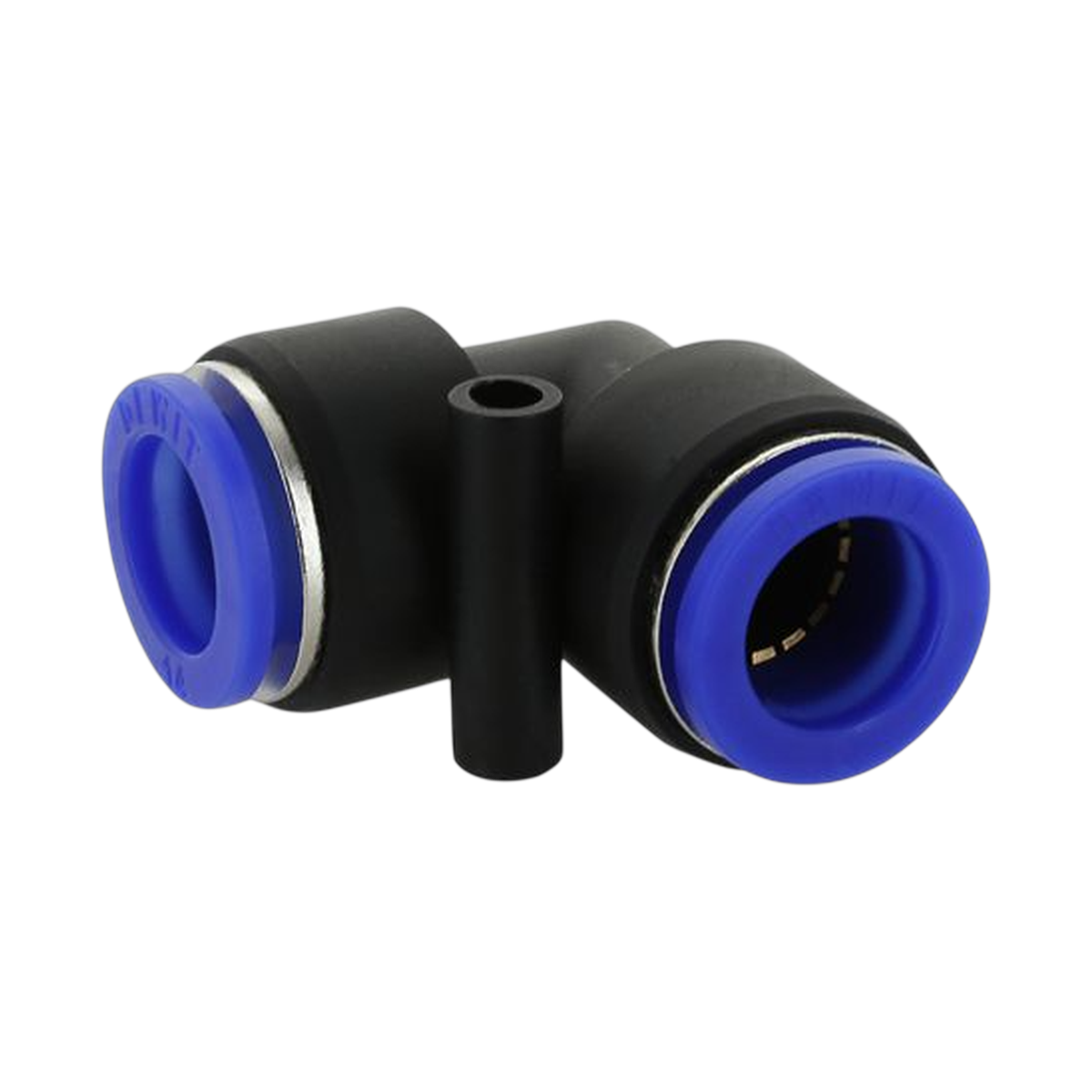

The DeWit Elbow Union Model 066 is the technical solution for making 90° changes in direction within pneumatic circuits. This connector ensures a fluid and constant airflow around corners. It is essential for installations inside cabinets or on machinery where space is limited and an aesthetic and professional finish is required. Its internal grip design is specifically calibrated for metric (mm) tubing.

Technical Specifications:

• Configuration: Tube - Tube (90° Angle)

• Available Sizes (O.D.): 4mm, 6mm, 8mm, 10mm, 12mm, 16mm.

• Coupling System: Instant / Push-to-Connect.

• Fluid: Compressed Air, Vacuum.

• Working Pressure: 0 to 145 PSI (0 to 10 Bar).

• Vacuum Pressure: -29.5 inHg (-750 Torr).

• Temperature: 0°C to 60°C.

• Material: PBT resin body and stainless steel claw.

• Mobility: The body allows rotation on the tube itself before pressurizing to adjust position.

Common Applications:

• Inside corners of control cabinets.

• Limit switches or sensors located in difficult positions.

• Packaging machinery with multiple tubing bends.

Download the Technical Data Sheet by clicking on the Image
