Pneumatic metric connector - plastic Y tube-to-thread union Model 0064 - Configure its Measurements

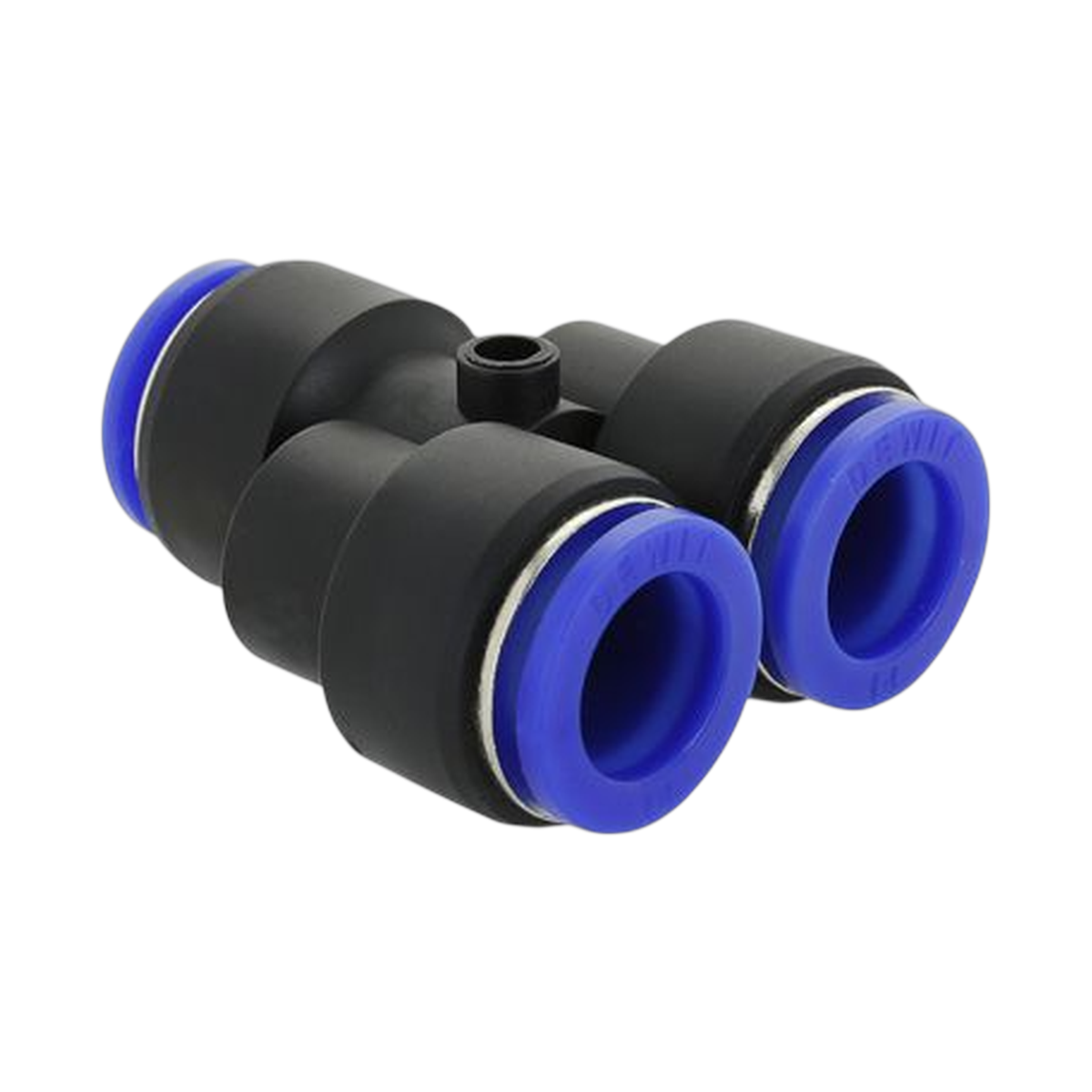

The DeWit Y Union Model 0064 (Metric Series) is designed to branch a compressed air line into two outlets (or combine two inlets) with an efficient geometric configuration. Its "Y" design reduces air turbulence compared to a traditional "T" and allows output hoses to remain parallel, which is ideal for maintaining order in complex installations or conduits.

Technical Specifications:

• Connection Type: Tube - Tube - Tube (3 symmetrical ways).

• Available Sizes (O.D.): 4mm, 6mm, 8mm, 10mm, 12mm, 16mm.

• Coupling System: Push-in (Automatic).

• Fluid: Compressed Air / Vacuum.

• Working Pressure: 0 to 145 PSI (0 to 10 Bar).

• Vacuum Pressure: -29.5 inHg (-750 Torr).

• Operating Temperature: 0°C to 60°C.

• Body Material: High-strength PBT Polymer.

• Seals: Nitrile rubber (NBR) for guaranteed airtightness.

Common Applications:

• Pneumatic control panels with high hose density.

• Automation and robotics systems.

• Distribution of pilot signals to valves.

• Machinery with metric (ISO) standards.

Download the Technical Data Sheet by clicking on the Image
