Metric pneumatic banjo flow regulator connector thread (R) Model 0131 - Configure your measurements

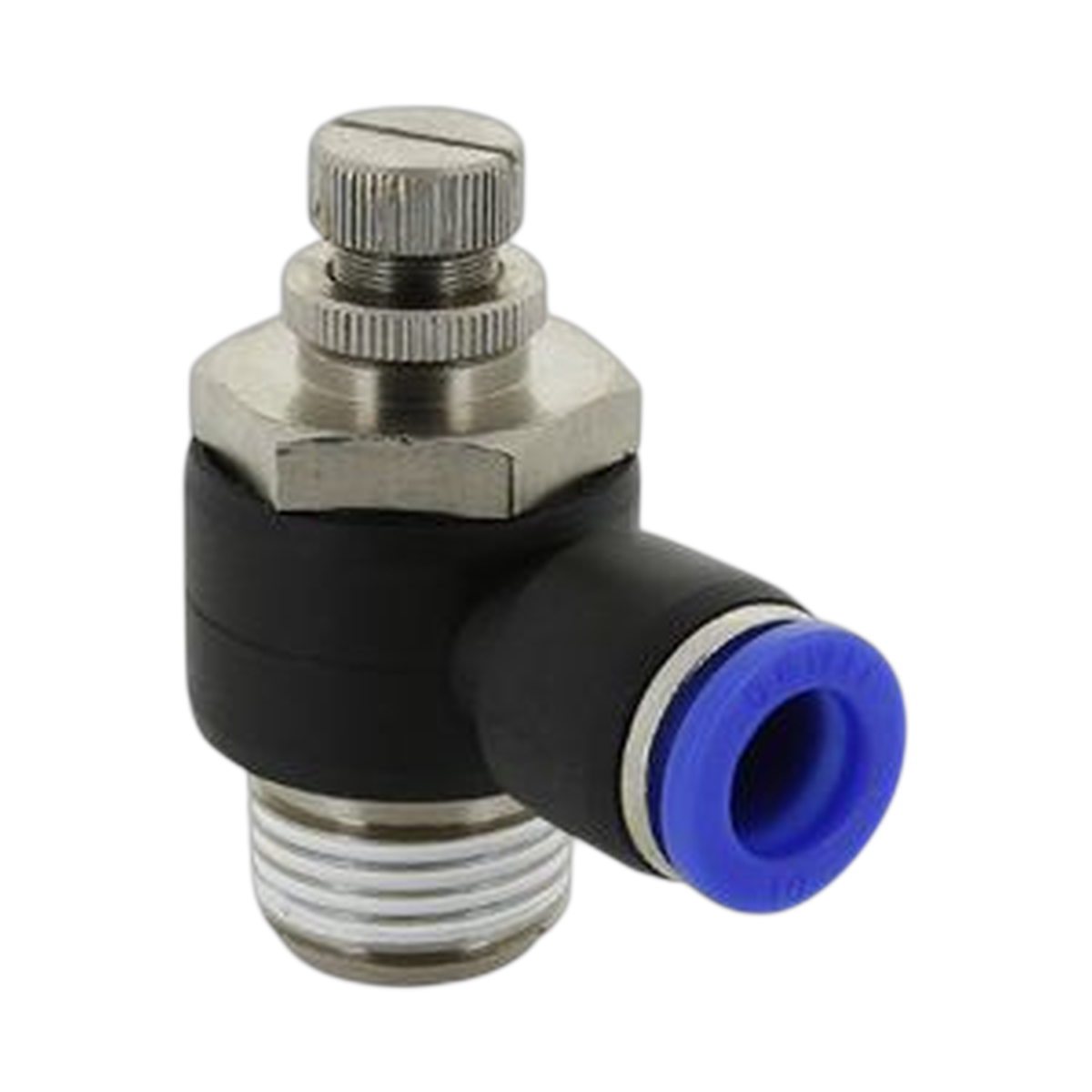

The DeWit Model 0131 Banjo Regulator Connector is the standard device for motion control in pneumatic actuators. Its compact "Banjo" design allows it to be mounted directly on the cylinder ports, saving space and eliminating the need for additional connections.

Technical Specifications:

• Function: Speed Regulation (Unidirectional).

• Regulation Type: Typically "Meter-Out" (Exhaust Regulation) [Industry Standard].

  • Note: Allows free flow in one direction and restricts it in the other.

• Connection A (Machine): Male Thread (NPT, BSPT, or G) with O-ring or Teflon included.

• Connection B (Hose): Instant Push-in.

• Adjustment: Manual knob with locking nut (to prevent loosening due to vibration).

• Body: Rotates 360° around the threaded bolt.

• Working Pressure: 0 to 145 PSI (0 to 10 Bar).

• Temperature: 0°C to 60°C.

• Material: Flame-retardant polymer body (PBT) and nickel-plated brass metal parts.

Common Applications:

• Pneumatic Cylinders: One is installed in each piston port to independently control the extension and retraction speed.

• Rotary Actuators: To smooth out rotation.

• Pneumatic Grippers: To prevent them from closing abruptly and damaging the held part.

Download the Technical Data Sheet by clicking on the Image
