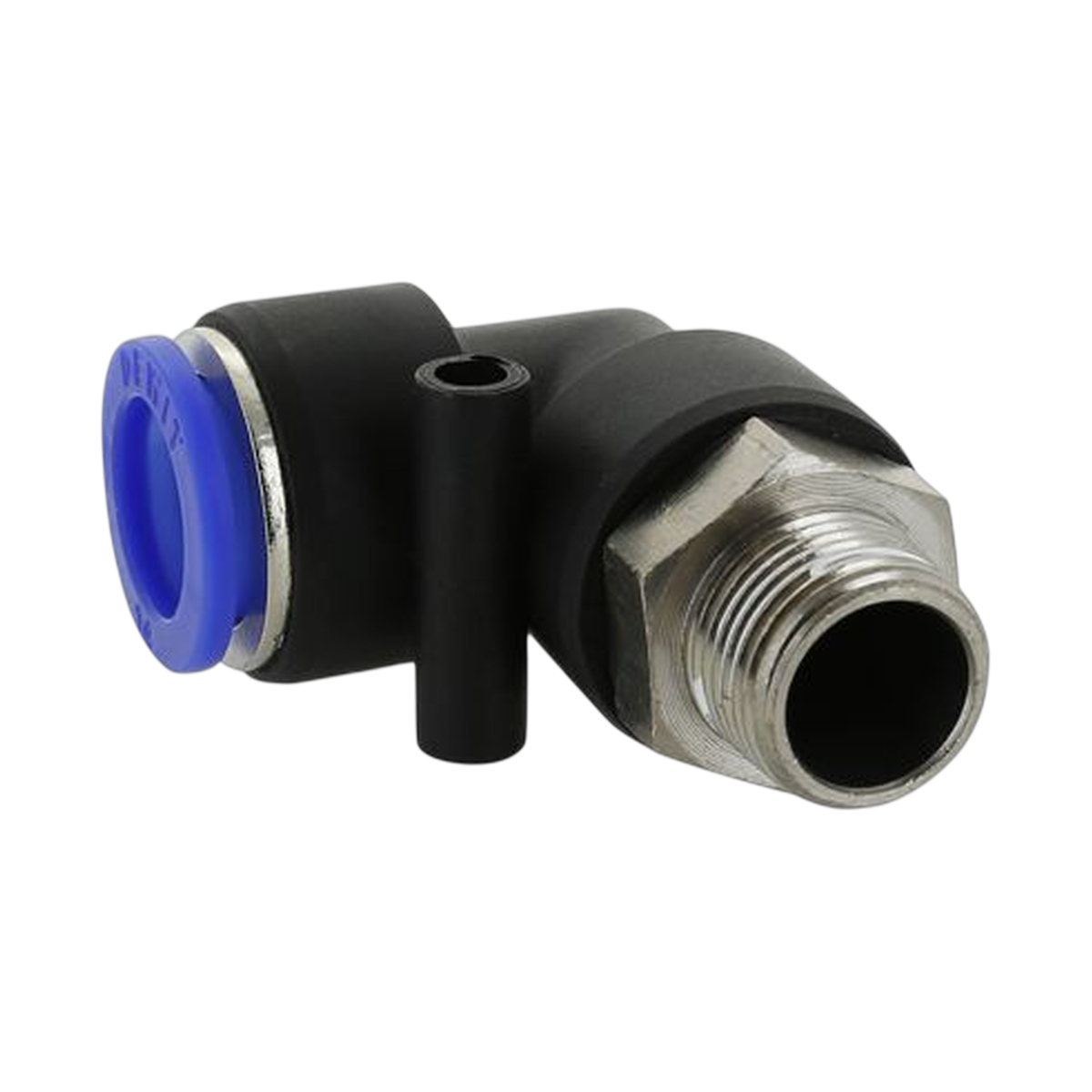

Metric pneumatic elbow male thread (R) connector Model 0122 - Configure your dimensions

The DeWit Model 0122 Male Elbow is designed to connect a pneumatic hose to a threaded port at a 90-degree angle. Its major technical advantage is its rotation capability: once the metal part (thread) has been tightened and secured in the machine, the plastic body can rotate freely 360 degrees. This allows the hose to be oriented in the exact direction required for a clean, stress-free installation.

Technical Specifications:

• Configuration: 90° Angle (L).

• Connection A (Machine): Male Thread (NPT, BSPT or BSPP).

• Connection B (Hose): Push-in for Tubing (mm or inches).

• Special Feature: 360° Rotating / Orientable Body.

• Material:

  • Threaded Part: Nickel-plated Brass (Corrosion resistant).

  • Body: High-strength PBT Polymer.

• Thread Seal: Includes pre-applied Teflon (on NPT/R) or O-ring (on G) for immediate sealing.

• Working Pressure: 0 to 145 PSI (0 to 10 Bar).

• Temperature: 0°C to 60°C.

Download the Technical Data Sheet by clicking on the Image
