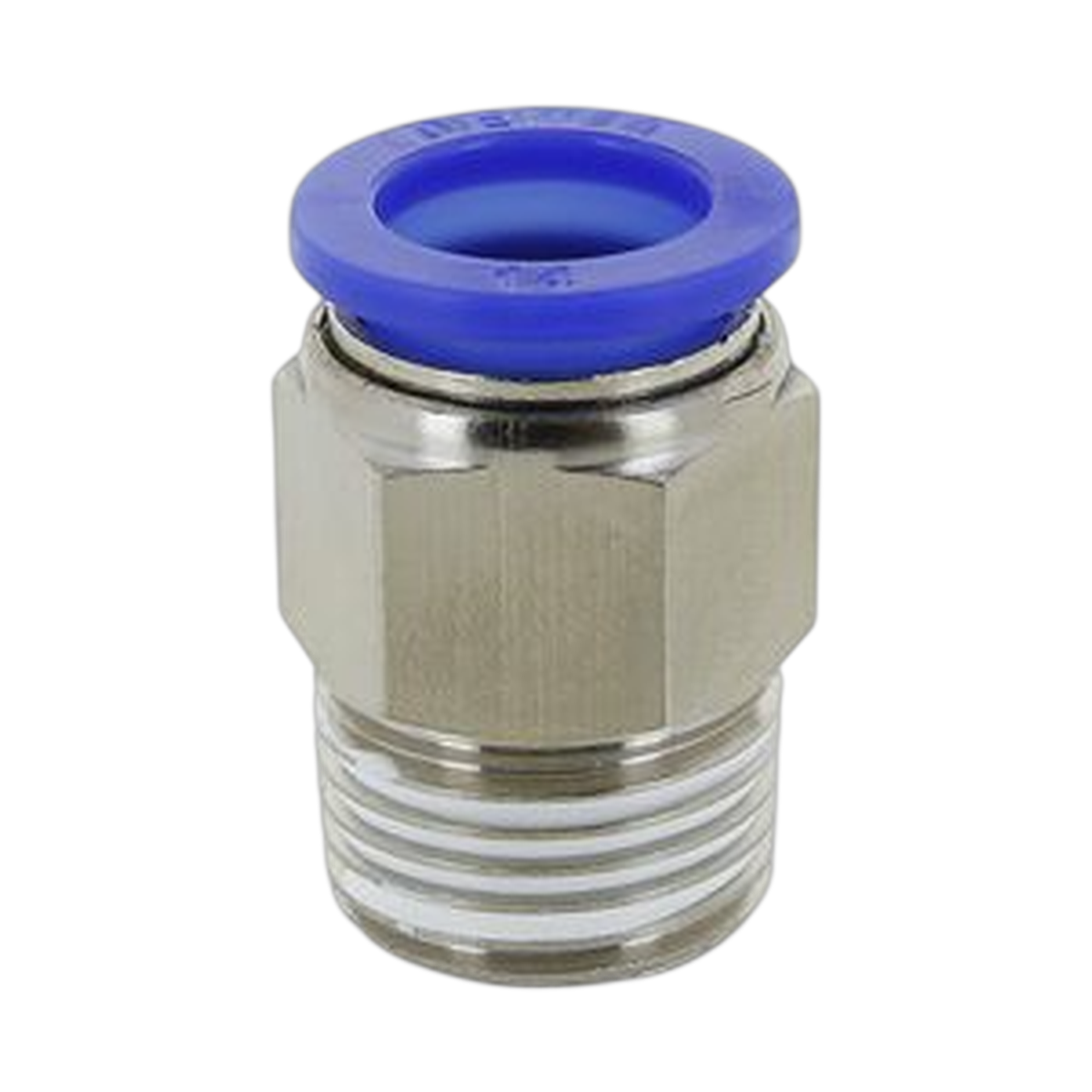

Hexagonal male straight metric pneumatic connector (R) Model 0121 - Configure your measurements

The DeWit Model 0121 Male Straight Connector is the standard component for starting any pneumatic circuit. It allows for connecting flexible tubing (hose) directly to the threaded ports of solenoid valves, pneumatic cylinders, maintenance units (FRL), and manifolds. Its external hexagonal design allows the installer to use a wrench to firmly tighten the connector to the port, ensuring a robust mechanical fastening.

Technical Specifications:

• Connection Type:

  • Side A: Male Thread (Available in 1/8", 1/4", 3/8", 1/2").

  • Side B: Push-in Tube Inlet (Available in mm and inches).

• Body: Hexagonal (Nickel-plated Brass or reinforced Polymer with metal base, depending on batch).

• Thread Sealing:

  • NPT/BSPT Threads: Include pre-applied Teflon (white sealant).

  • BSPP (G) Threads: Include captive O-ring.

• Fluid: Compressed Air, Vacuum.

• Working Pressure: 0 to 145 PSI (0 to 10 Bar).

• Temperature: 0°C to 60°C.

• Collet Material: Stainless steel (ensures the hose does not come loose).

Common Applications:

• Inlet and outlet ports on pneumatic cylinders.

• Connection of directional valves.

• Air filter and regulator outlets.

• Any point where the hose needs to be connected to a "machine".

Download the Technical Data Sheet by clicking on the Image
