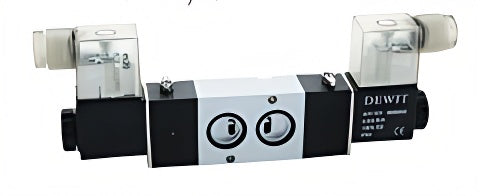

Pneumatic NAMUR Solenoid Valve DE WIT Series VN7 - 5/2 Way

DESCRIPTION FOR SOLENOID VALVE VN7 SERIES (5/2-WAY - NAMUR)

The 5/2-Way VN7 Series Pneumatic Solenoid Valve features the standard NAMUR mounting interface, allowing direct installation on rotary pneumatic actuators (widely used for automating ball or butterfly valves). This industrial design completely eliminates the need for hoses, nipples, and intermediate connections between the valve and the actuator, reducing installation times, saving plant space, and eliminating potential leak points.

Main Features:

• International NAMUR Standard: Ensures perfect and direct coupling on any standardized pneumatic actuator on the market.

• Complete Industrial Protection: Equipped with continuous duty coils with IP65 protection and Class F insulation, withstanding humid or dusty environments without failure.

• Manual Emergency Override: Includes a manual override button for cycling tests, purges, or maintenance on the actuator without the need for electrical power in the system.

• Robust and Reliable Design: Its aluminum body and precision internal components ensure fast response and millions of cycles of useful life in heavy-duty service.

Technical Specifications:

• Function: 5/2-Way (5 ports, 2 positions).

• Mounting Interface: NAMUR Standard.

• Supply/Exhaust Ports: 1/4", 3/8", and 1/2" NPT (Catalog terminations 08, 10, and 15).

• Coil Voltage Options (VT): 12 VDC, 24 VDC, 24 VAC, 110 VAC, and 220 VAC.

• Compatible Fluid: Compressed air filtered to 40 microns (lubricated or non-lubricated).

• Working Pressure: 1.5 to 8.0 bar (22 to 115 psi).

• Temperature Range: -5°C to 60°C.

• Body Material: Robust aluminum alloy with anti-corrosion finish.
