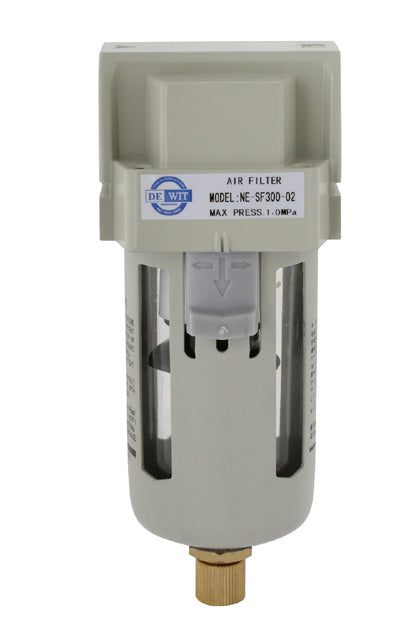

WIT SF Series Filter - Air Treatment

DE WIT's SF Series Filter removes solid particles, dust, and condensate from compressed air, protecting pneumatic components in the line. It features a polycarbonate bowl and manual or automatic condensate drain.

Features:

• Type: Filter (SF Series, Standard Line)
• Fluid: Compressed air
• Working pressure: 0 ~ 1.0 MPa
• Temperature: 5 ~ 60 °C
• Filtration rating: 5 µm and 40 µm
• Condensate drain: Manual or Automatic (to choose from)
• Bowl: Polycarbonate with guard
• Connection (NPT thread): according to selected size

Download the Technical Data Sheet by clicking on the Image
