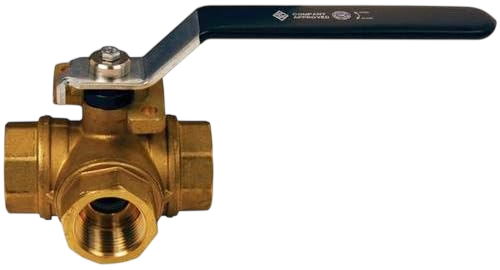

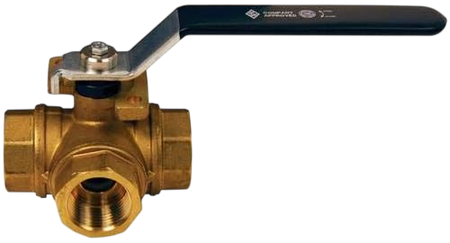

BBV series industrial 3-way brass valve for diverting flow, female NPT x female NPT x female NPT - Configurable in sizes

Flow Control and Diversion in a Single Valve The Dixon BBVDTW Series is designed to simplify piping. Instead of using two or three gate valves to change the route of a fluid, this 3-Way Ball Valve with "T" Pattern allows you to select where to direct the flow by simply turning the handle 90 degrees.

Made with a robust brass body and a chrome-plated brass ball, it offers durability and corrosion resistance. Its Standard Port design and PTFE seals ensure smooth and leak-free operation.

Key Technical Features:

• "T" Flow Pattern: Allows versatile diversion configurations (Inlet in the center and outlet to the left or right) depending on the lever position.

• Secure Construction: Blow-out proof stem and adjustable packing, ensuring operational safety.

• Thermal Resistance: Withstands temperatures up to 344°F (173°C), making it suitable for processes with hot water or thermal oils.

• Working Pressure: Rated for 400 PSI WOG (Water, Oil, Gas) and up to 100 PSI in Saturated Steam.

Technical Specifications

Recommended Applications

• Tank Selection: Fill Tank A or Tank B from a single pump.

• Bypass Circuits: Divert flow through a filter or bypass it directly during maintenance.

• Fluid Mixing: Being a "T" pattern, it allows connecting all 3 ways in certain positions (verify desired flow diagram).

Download the Technical Data Sheet by clicking on the Image
