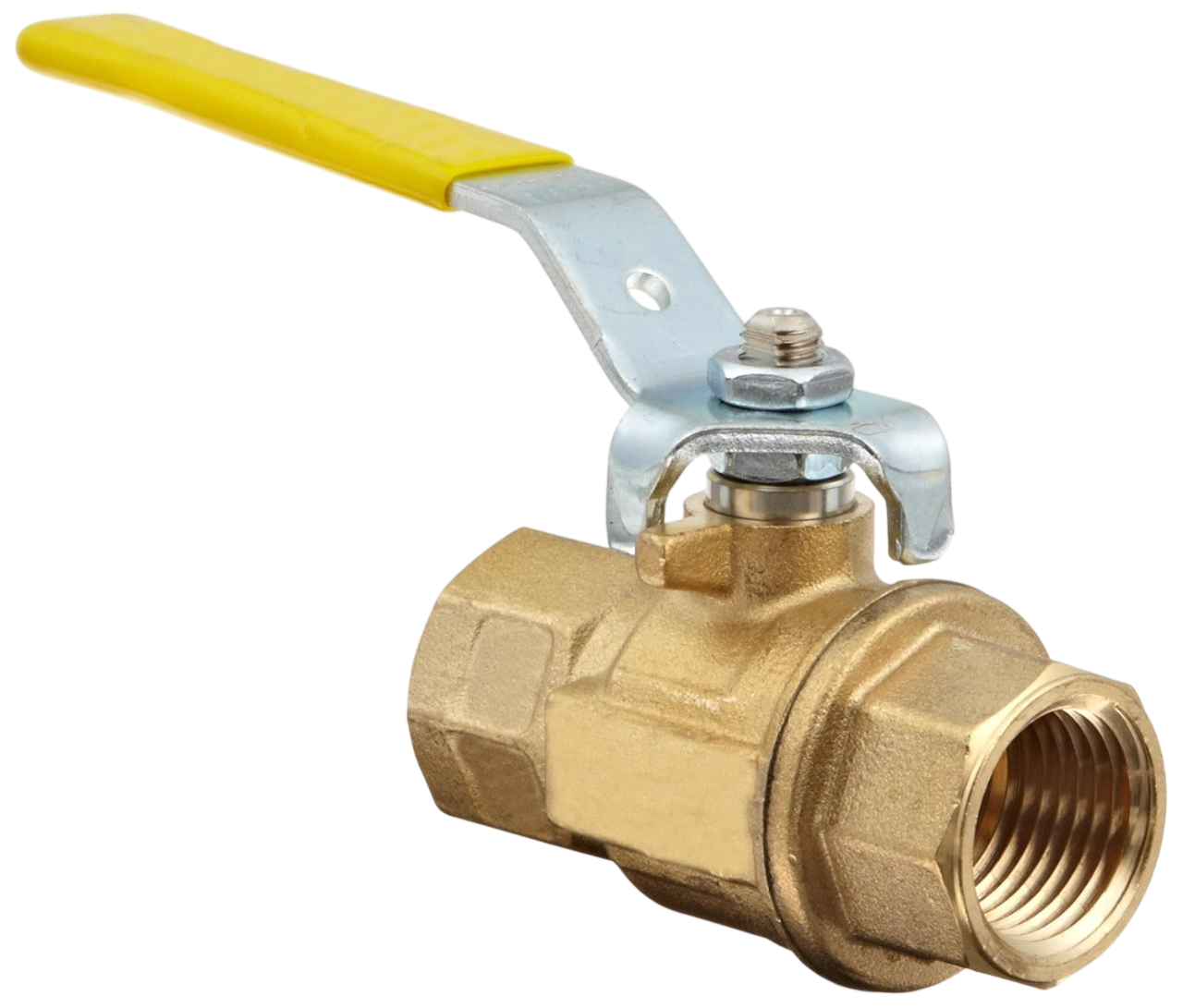

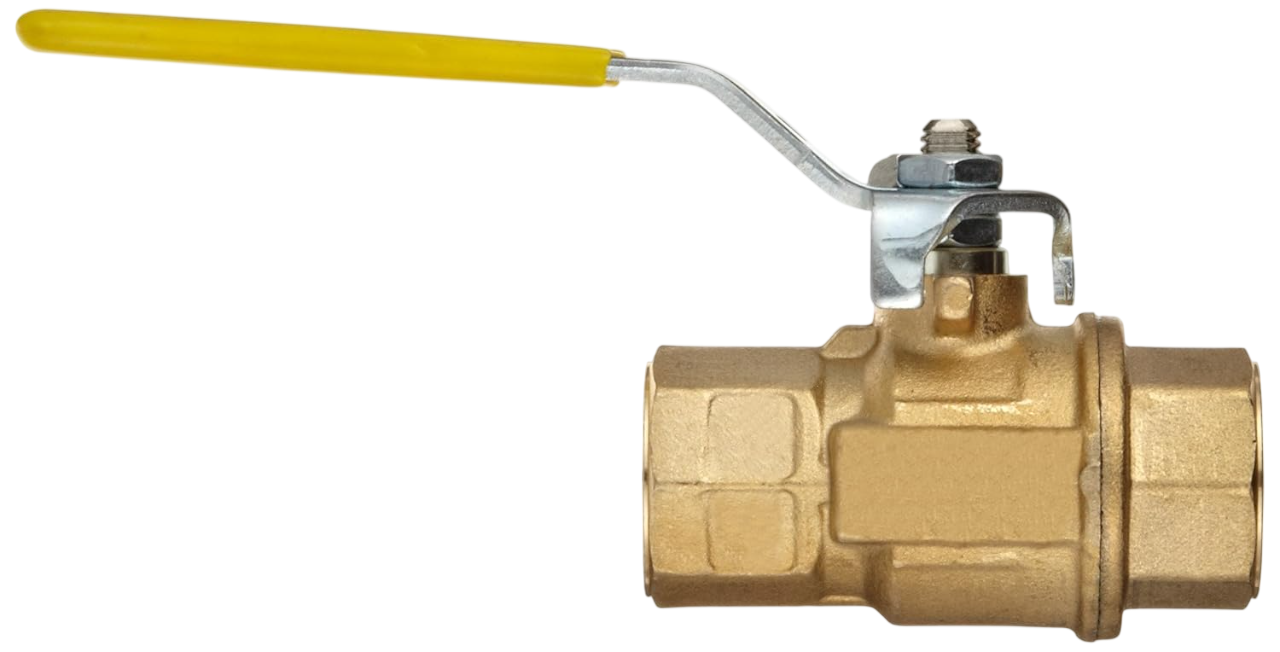

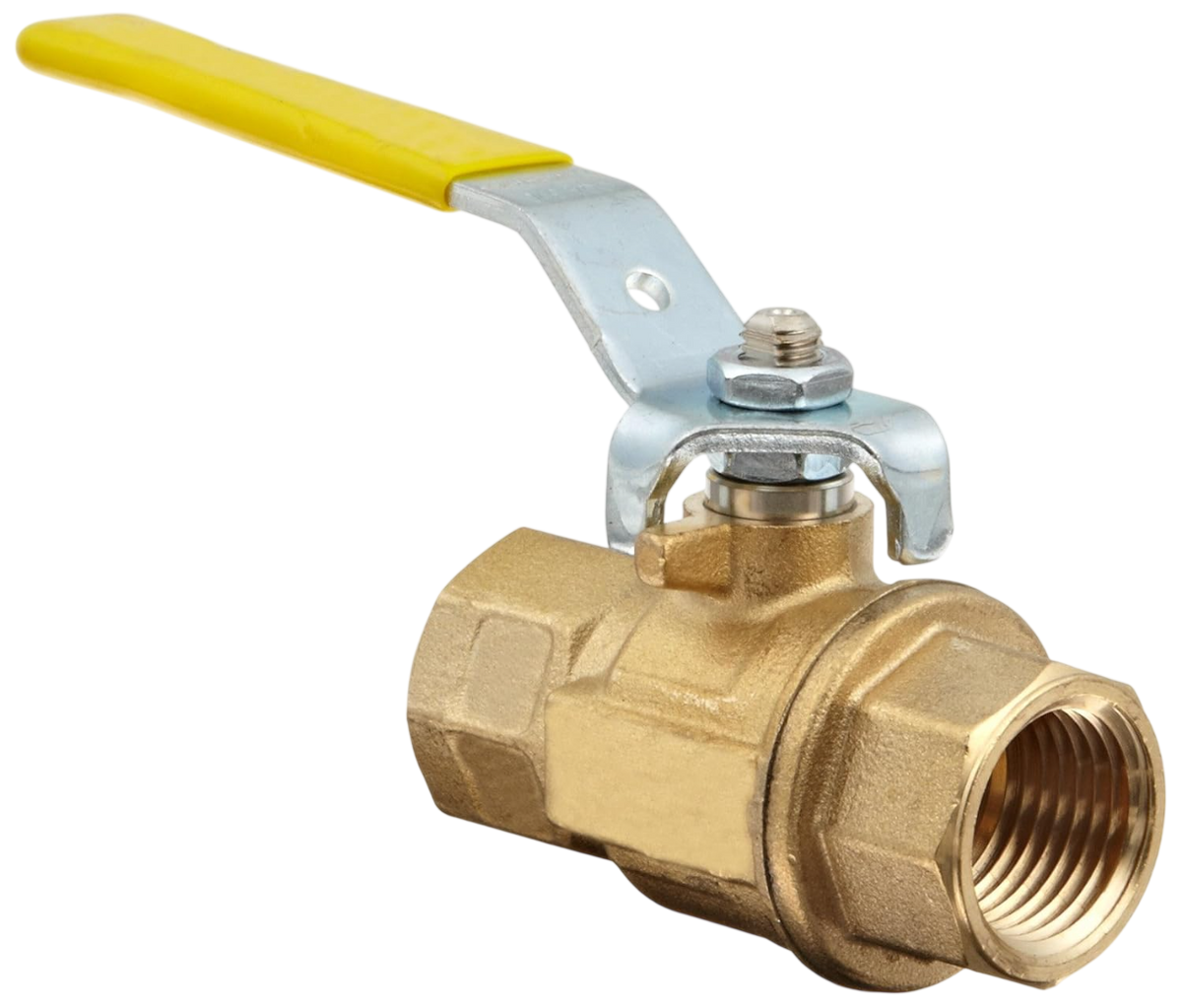

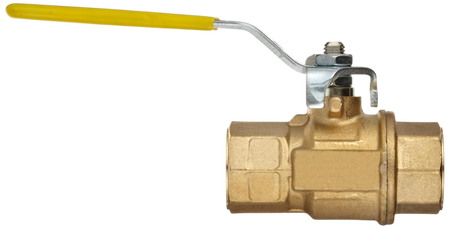

Industrial ball valve FBV series in brass NPT female x NPT female - Configurable in sizes

The Dixon FBV Series is a high-performance ball valve designed for demanding industrial and commercial applications. Unlike economical reduced-port valves, the FBV series features a Full Port design, meaning the ball bore has the same internal diameter as the pipe, eliminating flow restriction and pressure drop. Made from robust forged brass, this valve boasts international certifications (UL, CSA, FM) guaranteeing its safety in gas installations and fire protection. Its steel handle with a durable coating and blow-out proof stem make it the safest option for the operator.

Technical Features:

• 600 PSI WOG: Designed to withstand up to 600 pounds of pressure in Water, Oil, and Gas (WOG) at ambient temperature.

• PTFE (Teflon) Seals: High-quality seats and packing ensure a smooth, tight seal, as well as superior chemical resistance.

• Blow-out Proof Stem: Safety mechanism that prevents the stem from being ejected in case of excessive internal pressure.

• Certifications: UL (Underwriter Laboratories) listed, CSA, and NSF61 approved (making it suitable for potable water).

• Chrome-plated Ball: Brass ball with chrome plating to reduce friction and increase service life.

Technical Specifications

Recommended Applications

• Potable Water Systems: Thanks to NSF61 certification.

• Compressed Air: Main lines in workshops and factories.

• Fuel Control: Diesel or LP gas lines (verify local gas standard compatibility).

• Low-Pressure Hydraulics: Oil returns or suction lines.

Download the Technical Data Sheet by clicking on the Image
