Metric Pneumatic Tube-to-Tube Flow Control Valve Model 00NSF - Configure Your Sizes

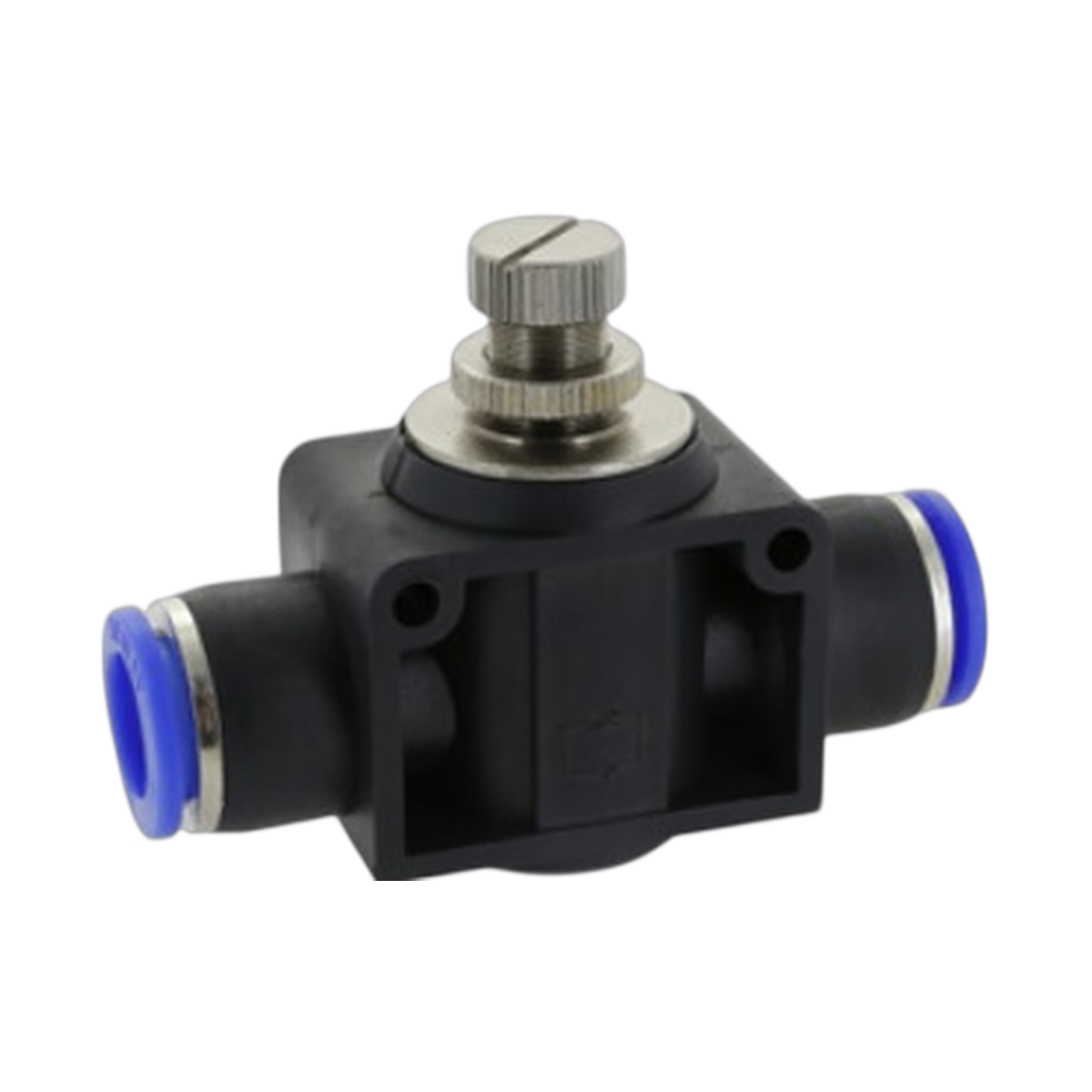

The DeWit 00NSF Valve is a precision device designed to be installed in-line with pneumatic hoses (in-line mounting). Its main function is to regulate the speed of advance or retraction of pneumatic actuators through controlled throttling of the air passage. It features a manual adjustment knob and a locking nut (jam nut) that ensures the setting is not lost due to machine vibrations.

Technical Specifications:

• Connection Type: Tube - Tube (Inlet and Outlet of the same diameter).

• Function: Flow Rate (Speed) Regulation.

• Available Sizes: 4mm, 6mm, 8mm, 10mm, 12mm.

• Adjustment: Manual (Needle-type knob) with safety lock.

• Fluid: Compressed Air.

• Working Pressure: 0 to 145 PSI (0 to 10 Bar).

• Temperature: 0°C to 60°C.

• Material: High-impact PBT resin body, brass internal parts.

Common Applications:

• Speed Control: To make a piston extend slowly and smoothly to avoid damaging the product or machine.

• Synchronization: Adjusting two cylinders to move at similar speeds.

• Dosing: Regulating the amount of air in continuous blowing applications.

Download the Technical Data Sheet by clicking on the Image
